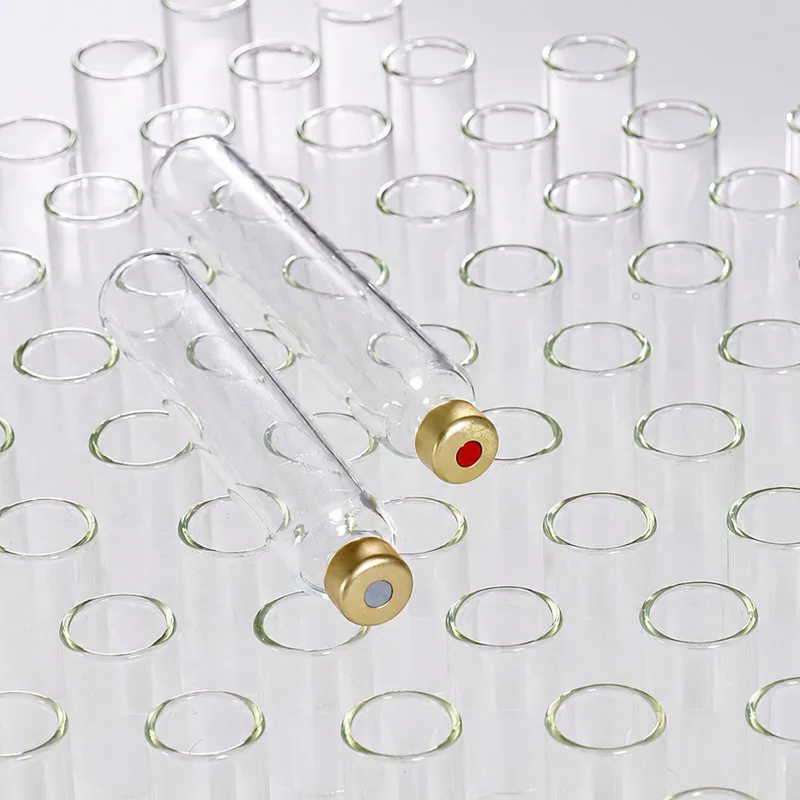

RTU Sterile Glass Cartridges for Pen Injector Systems

Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU
Стеклянный картридж RTU

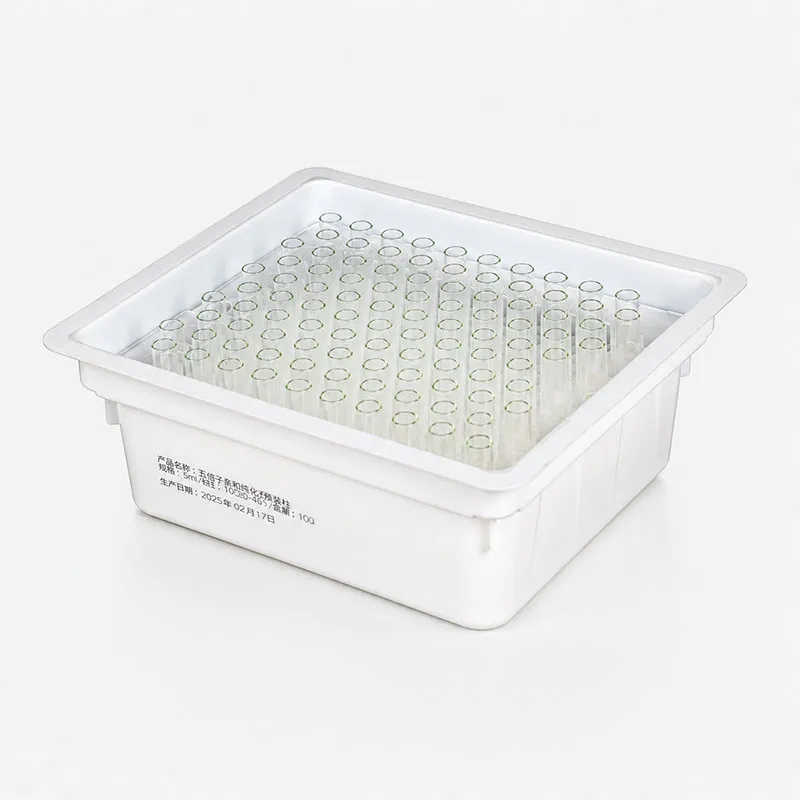

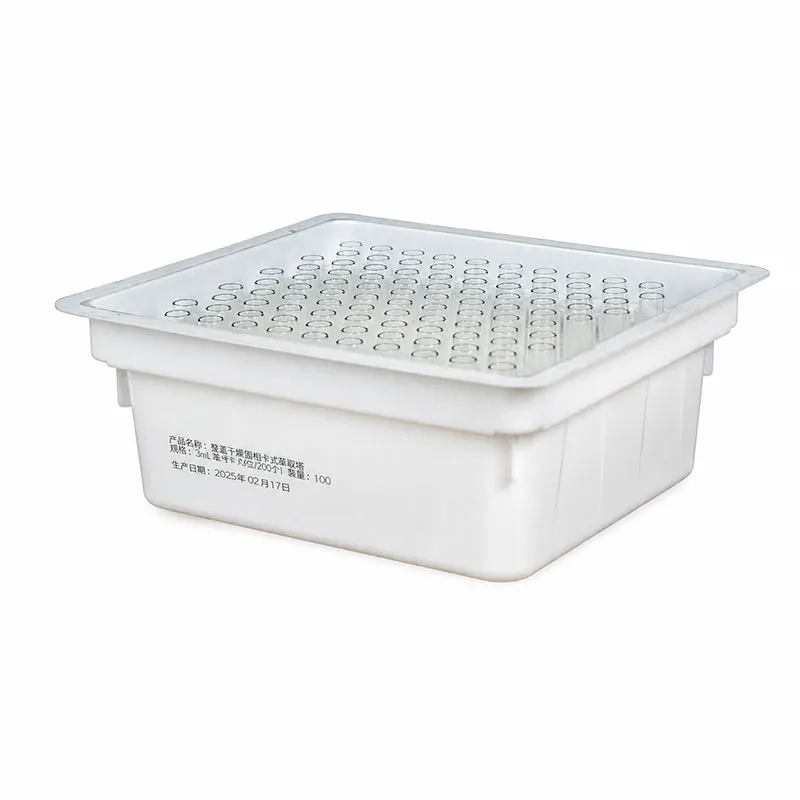

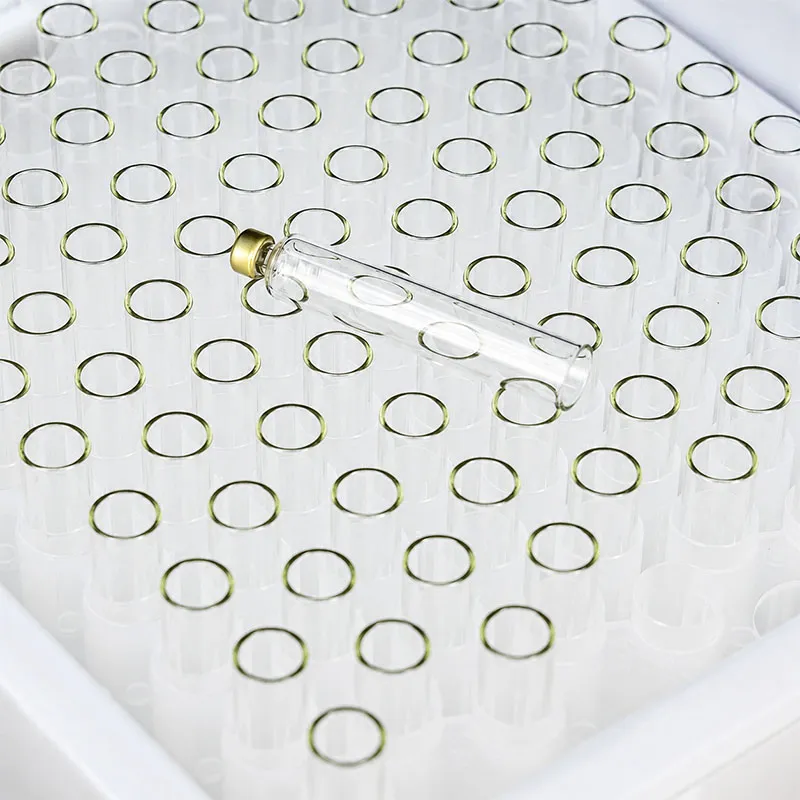

RTU Sterile Glass Cartridges for Pen Injector Systems

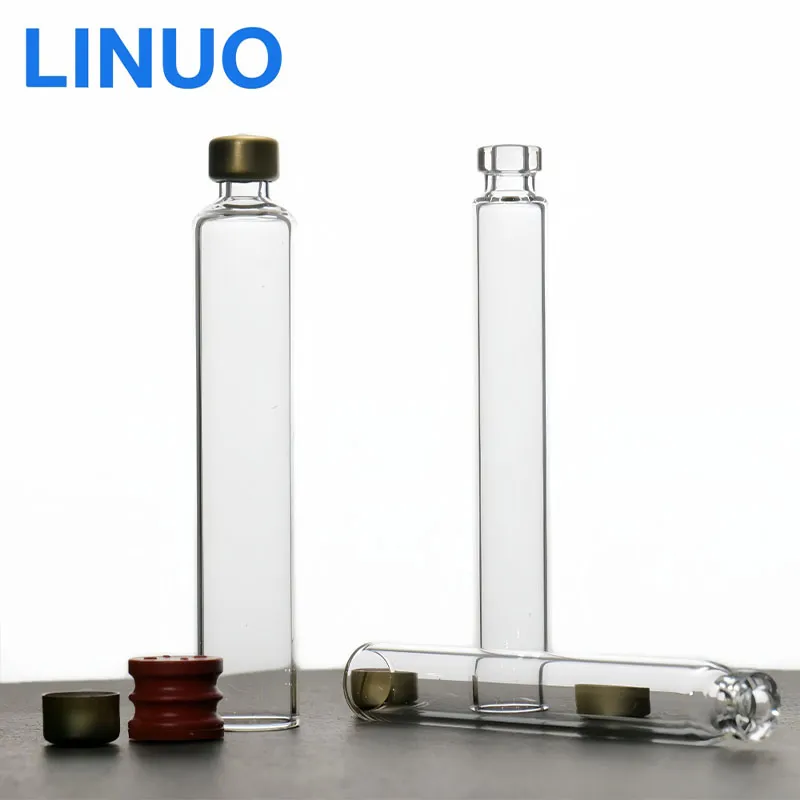

  • Sizes:

    Standard cartridges: 1ml, 1.5ml, 1.8ml, 3ml Dual-chamber cartridges: 3ml, 4ml, 5ml

  • Core Value:

    High dosing accuracy & zero contamination

  • Description:

    Ready-To-Use Sterile Cartridges are designed for pharmaceutical manufacturers, CDMOs, and fill-finish operations that require pre-prepared glass cartridges for efficient aseptic filling.

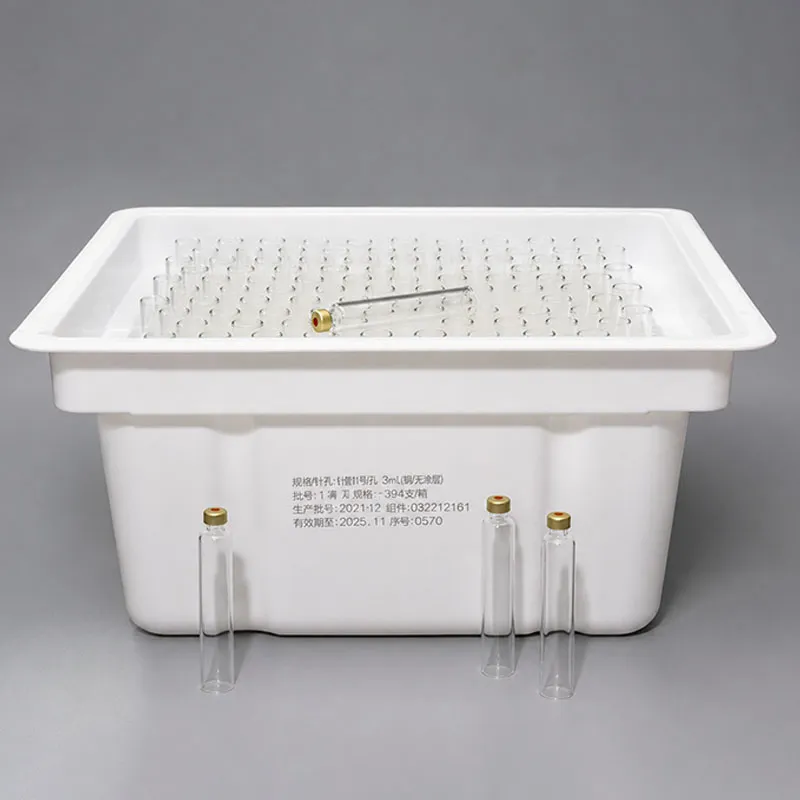

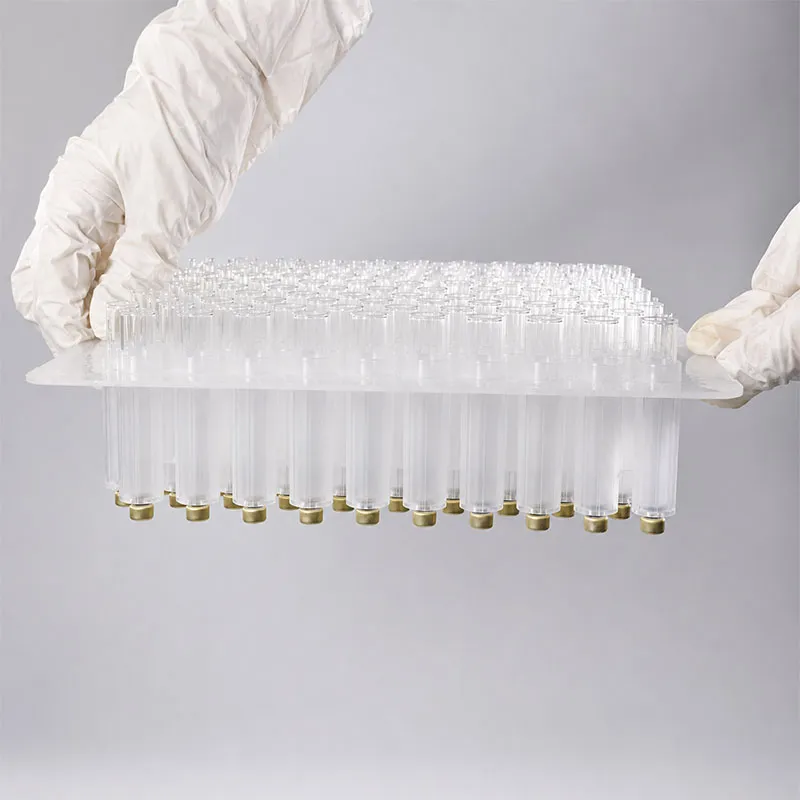

    Supplied in an RTU Nest & Tub System, these cartridges are processed to support washing-free, pre-sterilized, and direct-to-filling workflows for pen injector systems, biologics, vaccines, and high-value injectable drug applications.

Enquire Now
Enquire Now

RTU Glass Cartridge Advantages

Plug-and-Play Efficiency & Extreme Cost Savings

RTU sterile cartridges help bypass in-house washing, siliconization, depyrogenation, and sterilization preparation before filling. This supports faster production setup and simplified integration into sterile filling workflows.

Zero Downtime direct-to-filling

Our standardized Tub formats perfectly match mainstream automated filling machinery without any manual adjustment, ensuring a seamless, high-speed transition to your production line.

Reduced Contamination Risk

Tyvek® double breathing bags, clean-peel packaging, WFI rinsing, and controlled sterile barrier handling help reduce environmental bioburden and particle introduction risks.

Zero Breakage Risk During Transportation

Independent cavity suspension design prevents cartridge collision during transportation and decrating, helping reduce breakage risks during handling.

Smart ETO Sterilization & Tier-1 Quality

Features an extreme multi-stage washing program and rigorous ETO terminal sterilization (with >3KPa/min pre-vacuum leak alerts). Backed by global leaders like SCHOTT, West, and DuPont.

Innovative Dual-Chamber & Standard Options

Offering standard sizes (1ml–3ml) for high dosing accuracy, and premium Dual-Chamber models (3ml–5ml) specifically engineered for “Powder + Solvent” combinations, perfectly simplifying the reconstitution process.

Zero Downtime direct-to-filling

Our standardized Tub formats perfectly match mainstream automated filling machinery without any manual adjustment, ensuring a seamless, high-speed transition to your production line.

RTU Glass Cartridge Technical Specifications

Components Material Description Regulations and Standards Compliance
Cartridge barrels Borosilicate glass ISO13926-1、YBB00132004-2015
USP<660>、EP3.2.1
Rubber stopper Bromobutyl rubber
Chlorobutyl rubber
YBB00152004-2015、YBB00162004-2015
USP<381>、EP3.2.9
Alu-cap seal with combiseal Aluminum cap
Combiseal: Bromobutyl rubber
Polyisoprene rubber
YBB00162004-2015
USP<381>、EP 3.2.9
Silicone oil DC360 USP-NF、EP<3.1.8>
CP V.2-Dimethicone
Nest PP ISO 10993
USP
Tub PS ISO 10993
USP
Tyvek® material Tyvek®:PE-HD ISO 10993-5
Tyvek® seal material Tyvek®:PE-HD ISO 10993-5
Sterilized bag LDPE、Tyvek® ISO10993-5
Sterilization method ETO ISO17665-1
GB 18279.1-2015、GB/T 18279.2-2015

RTU Glass Cartridge Manufacturing Process

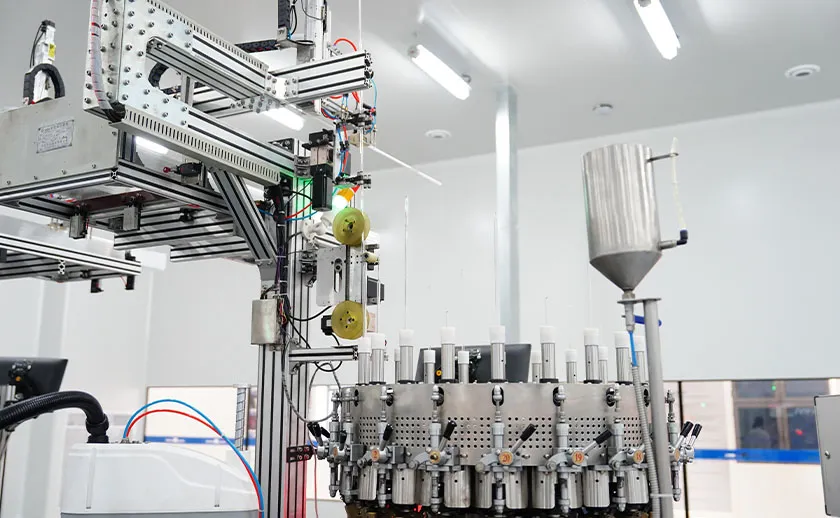

  • Automatic Glass Tube Feeding System
    · 01

    Automatic Glass Tube Feeding System

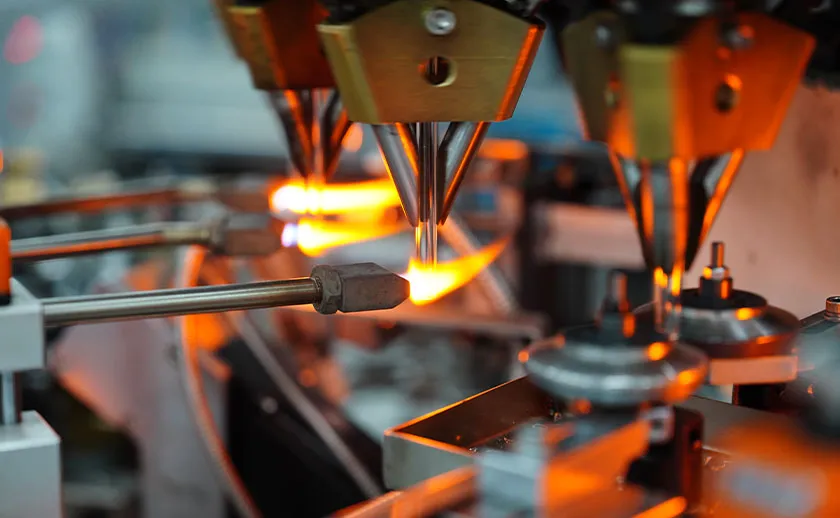

  • Forming
    · 02

    Forming

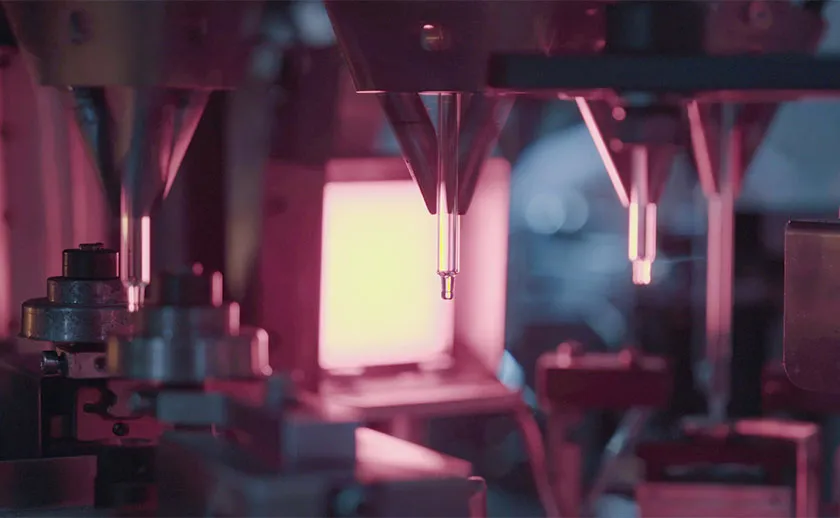

  • Dimensional and Visual Inspection
    · 03

    Dimensional and Visual Inspection

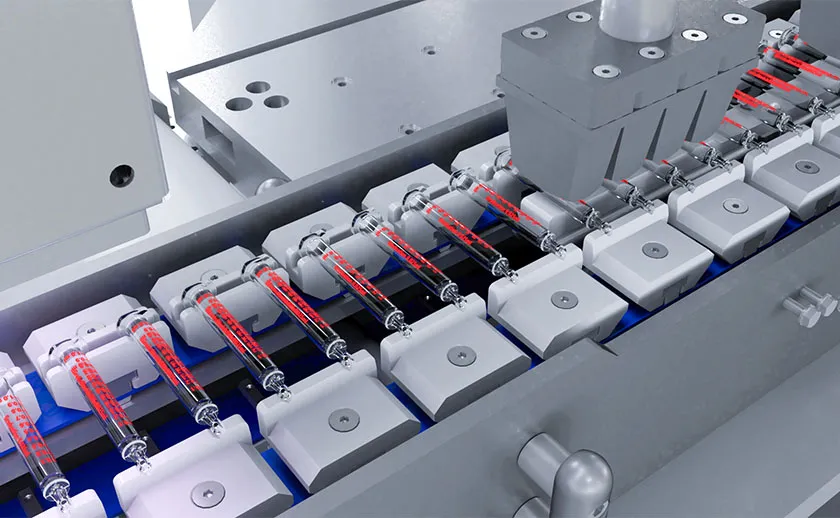

  • Printing and Thermal Curing
    · 04

    Printing and Thermal Curing

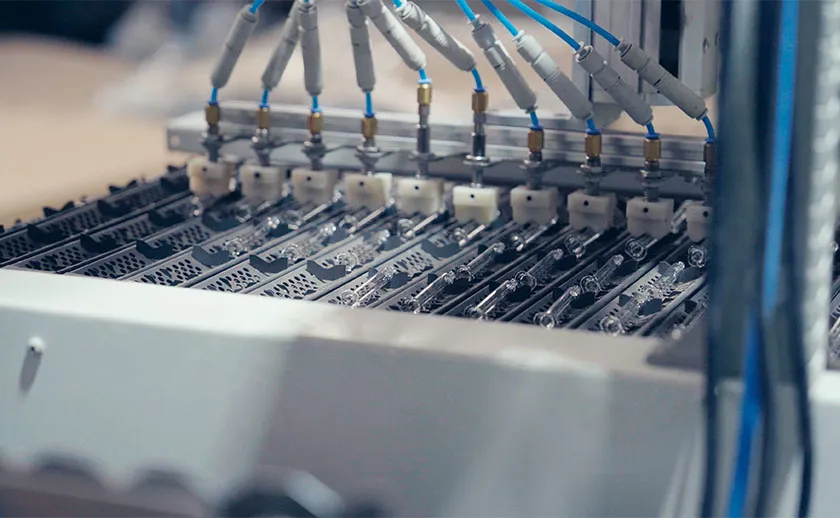

  • Annealing Process
    · 05

    Annealing Process

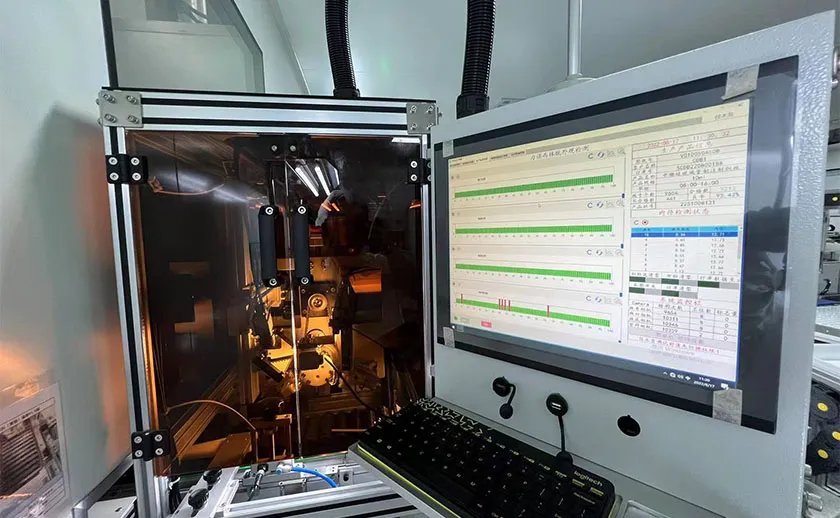

  • 100% Inline Inspection of Each Vial
    · 06

    100% Inline Inspection of Each Vial

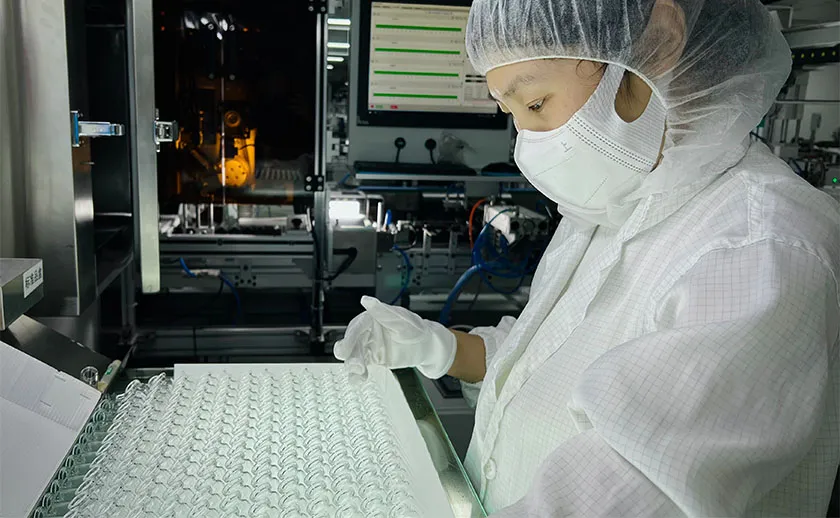

  • Manual Visual Inspection
    · 07

    Manual Visual Inspection

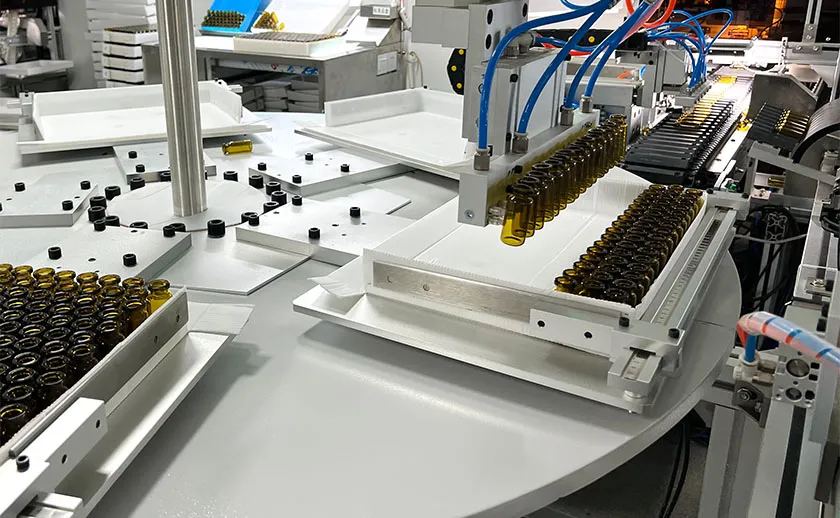

  • Автоматическая упаковка
    · 08

    Автоматическая упаковка

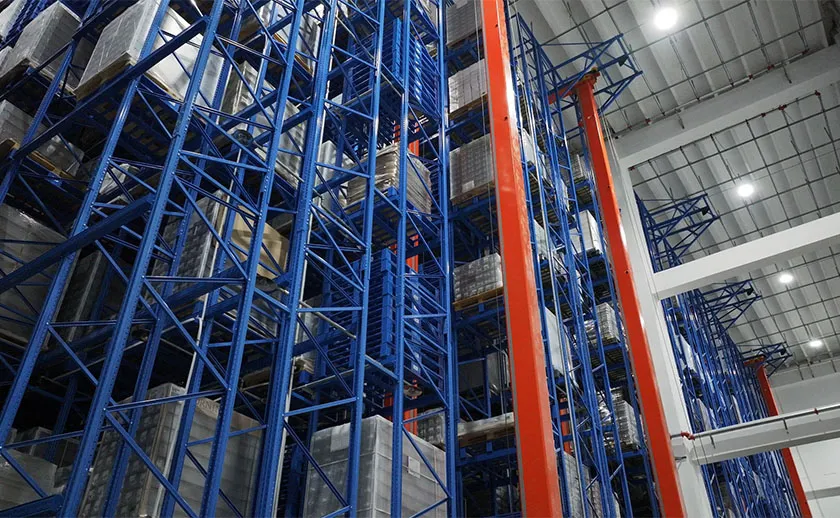

  • Intelligent Digital Warehouse
    · 09

    Intelligent Digital Warehouse

Core Process Flow

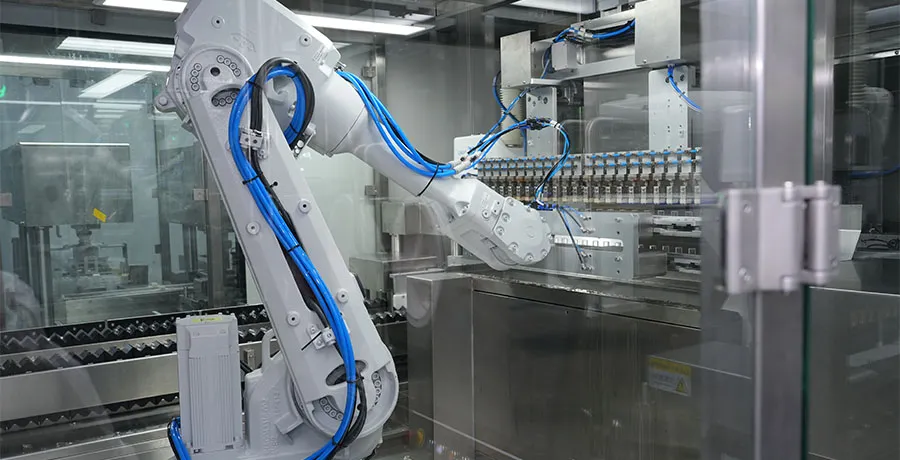

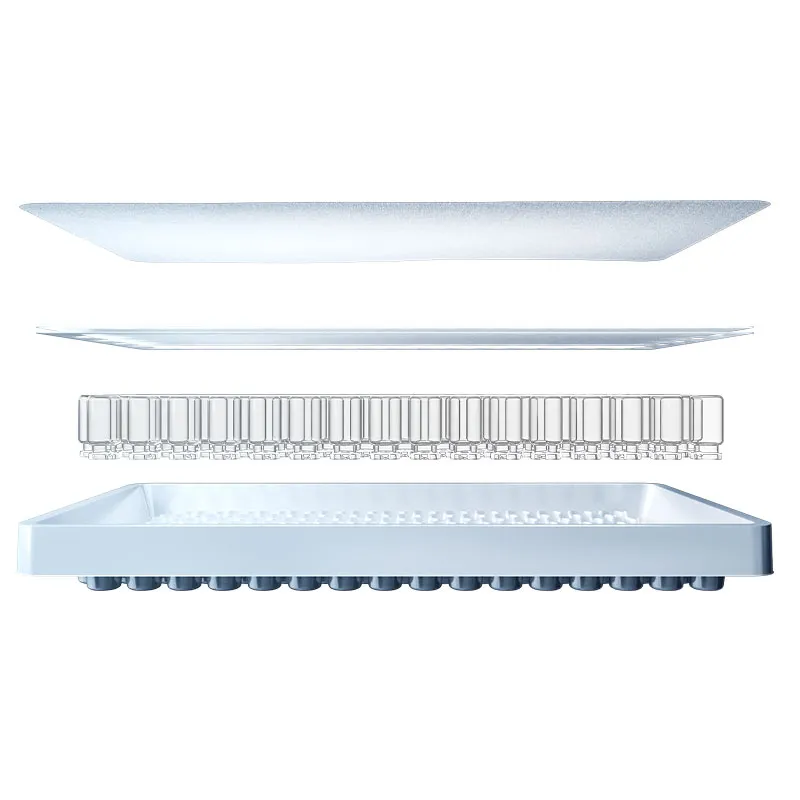

  • Флаконы RTU с упаковкой в лоток

    Core Washing Program

    Advanced multi-stage cleaning system designed for pharmaceutical glass packaging, ensuring high cleanliness, low particulate levels, and endotoxin control compliant with injectable standards.

    6× Air Blowing (Ionized air for macro-particle removal)
    2× Purified Water Rinsing (Chemical residue removal)
    2× WFI Rinsing (Endotoxin and pyrogen control)

  • ETO Sterilization CCP Dashboard

    Our sterilization process is rigorously monitored to ensure absolute safety and 100% sterility:

    Temp: 30–60 ℃

    ETO Conc.: 250–1200 mg/L

    Time: 4–12 Hours

    Humidity: 30%–80% RH

    Pre-vacuum Leak Alert: > 3KPa / min pressure change triggers immediate auto-stop.
    Safe Release: Door opens only when internal pressure is within 5KPa of atmospheric pressure.

Applications & Scenarios

  • Vaccine Field

  • Blood Products

    Blood Products

  • Biopharmaceutical Field

    Biopharmaceutical Field

  • High-Value Innovative Drugs

    High-Value Innovative Drugs

  • Aesthetic Medicine

    Aesthetic Medicine

  • High-End Cosmetics

    High-End Cosmetics

Customization & OEM/ODM Services

  • Dimensions

    Custom c apacity (0.1ml–50ml+), diameter, height, wall thickness

  • Printing &Coding

    Silk-screen, HD printing, laser coding, hot stamping

  • Siliconization & Coating

    Hydrophobic inner surface; UV-blocking or anti-friction outer coating

  • Packaging & Sterilization

    Bulk/RTU nest-and-tub /RFF; ETO sterilization available
