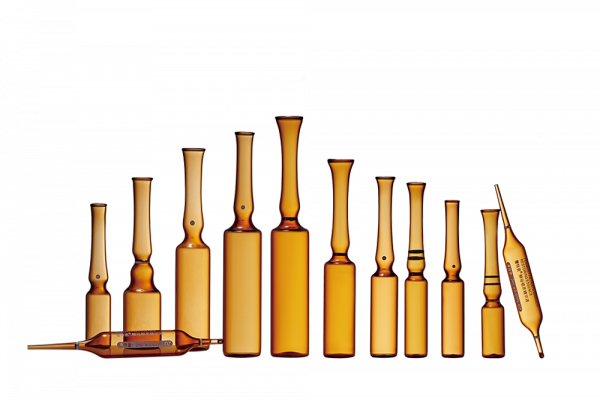

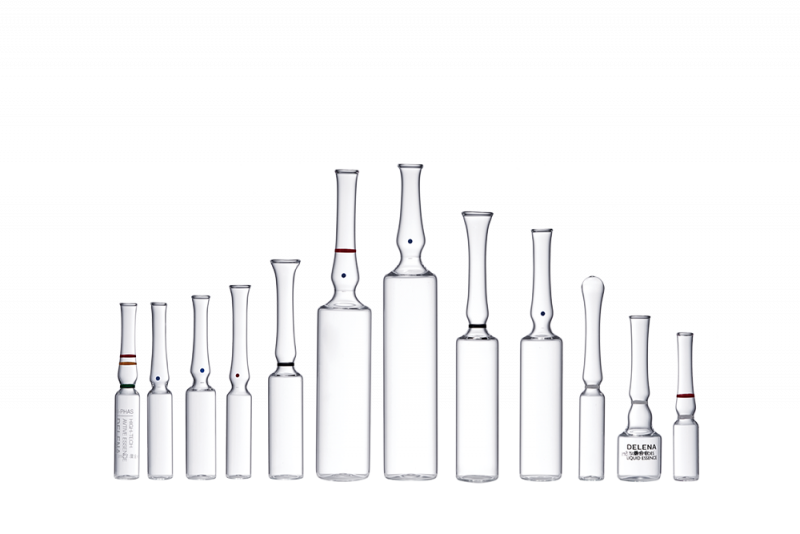

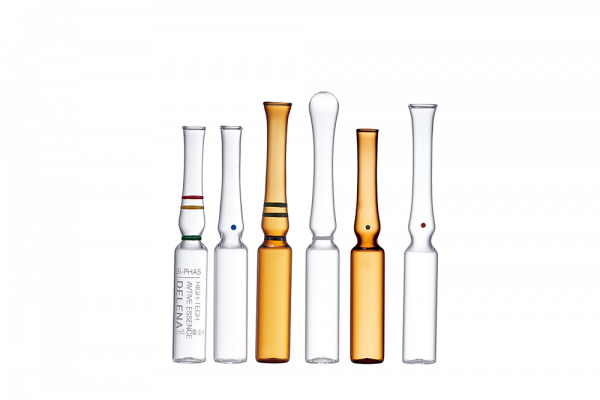

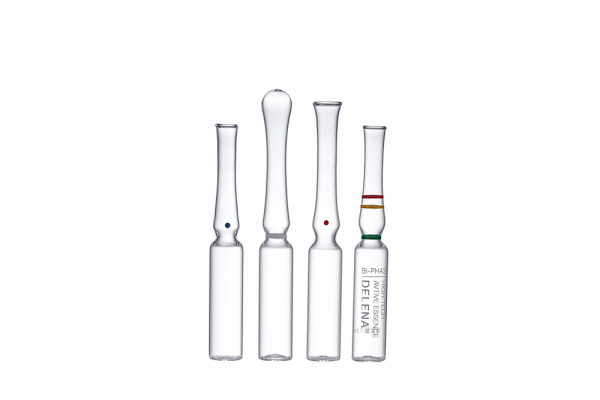

Ampoules
◆ Comply with EP, USP, JP, and ChP
◆ 100% online inspection of appearance and dimensions
◆ Customized product available: Customize size/type, OPC, CBR, Several color rings, Printing
Product Detail

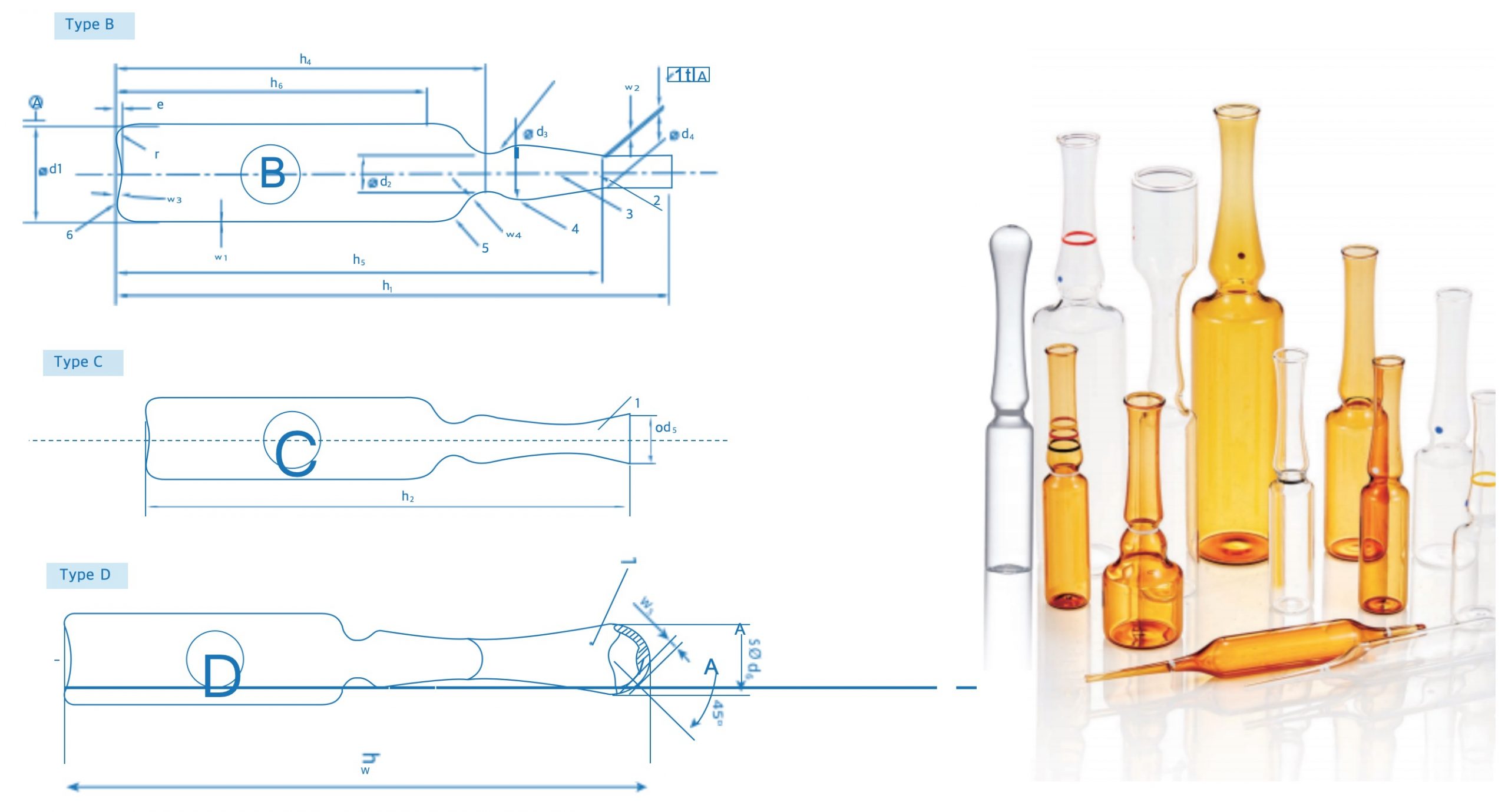

Borosilicate glass ampoule dimensions (Unit)：mm ISO 9187-1: 2010
| specifications （ml） | Outer Diameter | Overall height | Height | Thickness | Circular runout t (Max) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d1 | d2 | d3 | d4 | Type B h1 | Type C h2 | Type D h3 | h4 | h5 | h6 (Min) | h9 (Max) | w1 | w2 | w3 (Min) | ||
| 1 | 10.75 | 6.5 | 8.5 | 6 | 60 | 67 | 70 | 25.5 | 47 | 21 | 32.5 | 0.5 | 0.37 | 0.3 | 0.6 |
| 2 | 10.75 | 6.5 | 8.5 | 6 | 72 | 79 | 83 | 37.5 | 57 | 33 | 44.5 | 0.5 | 0.37 | 0.3 | 0.6 |
| 3 | 12.75 | 6.5 | 8.5 | 6 | 75 | 82 | 89 | 39.5 | 62 | 35 | 46.5 | 0.5 | 0.37 | 0.3 | 0.8 |
| 5 | 14.75 | 7 | 9 | 7 | 83 | 90 | 95 | 46.5 | 68 | 41 | 54 | 0.55 | 0.4 | 0.4 | 1 |
| 10 | 17.75 | 7.5 | 9.5 | 7.1 | 102 | 109 | 112 | 62 | 87 | 55 | 70 | 0.6 | 0.47 | 0.4 | 1 |
| 20 | 22.5 | 8.5 | 12 | 7.8 | 113 | 120 | 126 | 76 | 100 | 65 | 84.5 | 0.7 | 0.5 | 0.5 | 1.2 |
| 25 | 22.5 | 8.5 | 12 | 7.8 | 128 | 135 | 141 | 91 | 115 | 80 | 99.5 | 0.7 | 0.5 | 0.5 | 1.2 |
| 30 | 22.5 | 8.5 | 12 | 7.8 | 143 | 150 | 156 | 106 | 130 | 95 | 114.5 | 0.7 | 0.5 | 0.5 | 1.2 |
